SURGE ARRESTER
4 POLE - METAL OXIDE VARISTOR - WITH A GAS DISCHARGE TUBE - TYPE 2
a four-pole, metal oxide varistor surge arrester combined with a gas discharge tube, Type 2, providing the equipotential bonding and discharge of the switching overvoltage, which is generated in power supply systems entering the building.
The WSP-T2PDM3/20/50/275R is a four-pole, metal oxide varistor surge arrester combined with a gas discharge tube, Type 2 according to BS EN 61643-11 and IEC 61643-11. These arresters are recommended for use in the Lightning Protection Zones Concept at the boundaries of LPZ 1-2 (according to IEC 1312-1 and BS EN 62305), where they provide the equipotential bonding and discharge of the switching overvoltage, which is generated in power supply systems entering the building.

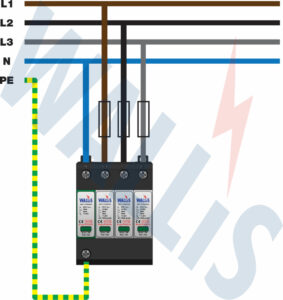

The main use of the WSP-T2PDM3/20/50/275R arrester is in all kinds of industry, residential and administration buildings. They are to be placed into the subsidiary switchboards or control boxes.
Additional information
| Maximum Continuous Operating Voltage (Uc) | 275V AC/350V DC |
|---|---|
| Maximum Discharge Current (Imax) | 50 kA |
| Nominal Discharge Current for Class II Test (8/20) (In) | 20 kA |
| Total Discharge Current (8/20) L1+L2+L3+N -> PE (Itotal) | 50 kA |
| Voltage Protection Level (Up) | <1.3 kV |
| Impulse Discharge Current for Class I Test (10/350) N/PE (Iimp) | 20 kA |
| Temporary Overvoltage (TOV) L/N (Ut) | 335 V/5s |
| Temporary Overvoltage (TOV) N/PE (Ut) | 1200V/0.2s |
| Short-circuit Withstand Capability (IP) | 60 kArms |
Brand
A. N. Wallis
